MF11 Series NTC Thermistor For Electronic Circuit Temperature Compensation

Place of Origin : CHINA

Brand Name : JK

Certification : ROHS,ISO 9001

Model Number : MF11

MOQ : 5000PCS

Price : Negotiable

Packaging Details : Bulk

Delivery Time : 7 days

Payment Terms : T/T & Paypal

Supply Ability : 5000000000PCS

Contact Now

MF11 Series NTC Thermistor For Electronic Circuit Temperature Compensation

Characteristics

1. MF11 series in the form of radial resin coated form.
2. Wide resistance range:0.01~200KΩ
3. Resistance tolerance can be ±5%
4. Rated power:0.5W
5. Good consistency.
6. Operating temperature range: -55 ~ +125℃

Application

1. Electronic circuit temperature compensation.
2. Computation equipment temperature compensation.
3. Temperature compensation of instrument loop, integrated circuit, crystal oscillator.
4. Commonly precision temperature measurement and control

Dimension (Unit:mm)

MF11 Series NTC Thermistor For Electronic Circuit Temperature Compensation

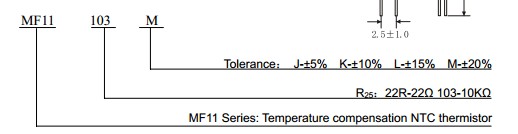

Part number explanation

MF11 Series NTC Thermistor For Electronic Circuit Temperature Compensation

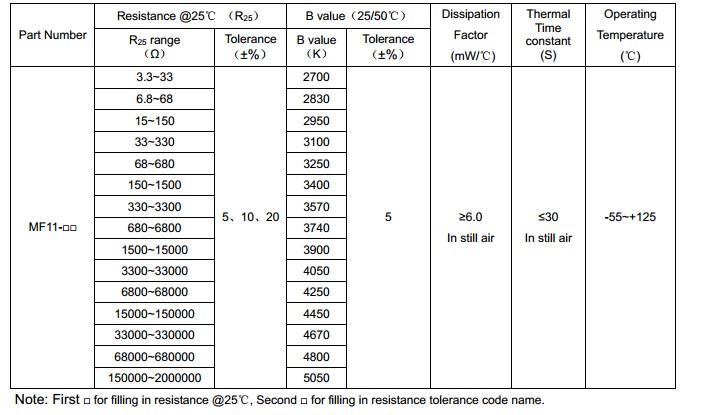

Specification

MF11 Series NTC Thermistor For Electronic Circuit Temperature Compensation

MF11 Series NTC Thermistor For Electronic Circuit Temperature Compensation Images
