Automotive Glass Fuses 5 x 20mm 15A 250V Slow Blow 15 Amp

Place of Origin : CHINA

Brand Name : JK

Certification : ROHS,ISO 9001,UL,CUL.PSE

Model Number : 5GK

MOQ : 5000PCS

Price : Negotiable

Packaging Details : Bulk

Delivery Time : 7 days

Payment Terms : T/T & Paypal

Supply Ability : 500000000 Piece/Pieces per Month

Contact Now

Quick details

Designed toInternational (IEC )Standards for useglobally

Meets the IEC60127-2, Sheet 2specification for fastacting fuses

Available in cartridgeand axial lead form

RoHS compliant andlead-free

Description

5x20mm fast-acting glass body cartridge fuse designed to

IEC specification.

Application

Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.

Specification

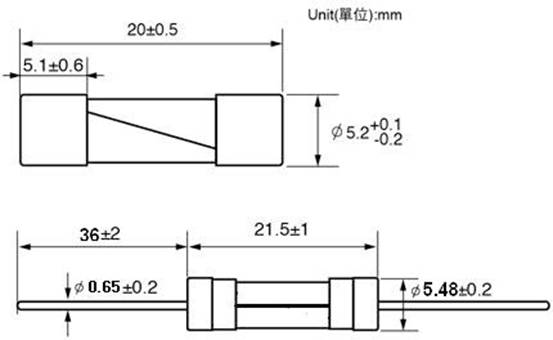

Dimensions

Automotive Glass Fuses 5 x 20mm 15A 250V Slow Blow 15 Amp

Product:Fast-Acting Type

Model:5GK

Product Characteristics

Materials

    Body:Glass tube
    Lead:Tinned copper wire
    Cap:Brass with nickel plated
    Element:Alloy

Operating Temperature
-55℃ to + 125℃ (consider de-rating)

Solder ability
260 ℃, ≦ 3s. (wave)
350±10 ℃, ≦ 3s. (soldering iron)

Resistance to Soldering Heat
260 ℃, 10s. (wave)
350 ℃, 5s. (soldering iron)

Storage Conditions

Can be stored for 3 years under tight seal condition at temperature
     of +10℃~60℃, relative humidity ≤ 75%.
     At most can be kept 30 days at temperature +10℃~60℃,
    relative humidity ≤ 95% under covered conditions.

I-T Characteristics

Ampere Rating	% of Ampere Rating	Opening Time
100mA~30A	100%	4Hrs Min.
	135%	1Hrs Max.
	200%	5s Max.
