15A 250v Fast Blow Fuses 6x30mm

Place of Origin : CHINA

Brand Name : JK

Certification : ROHS,ISO 9001,UL,CUL.PSE

Model Number : 6CK

MOQ : 1000PCS

Price : Negotiable

Packaging Details : Bulk

Delivery Time : 7 days

Payment Terms : T/T & Paypal

Supply Ability : 500000000 Piece/Pieces per Month

Contact Now

15A 250v Fast Blow Fuses 6x30mm

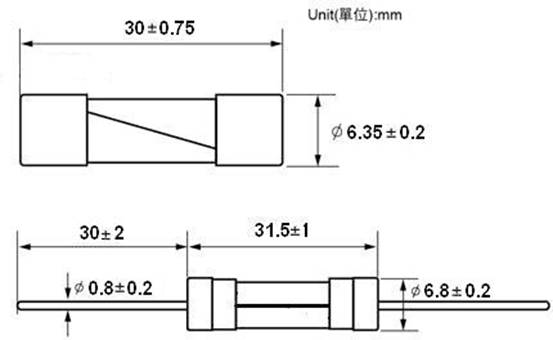

Dimensions

15A 250v Fast Blow Fuses 6x30mm

Product:Fast-Acting Type

Model:6CK

Product Characteristics

Materials
    Body:Ceramic tube
    Lead:Tinned copper wire
    Cap:Brass with nickel plated
    Element:Alloy

Operating Temperature
-55℃ to + 125℃ (consider de-rating)

Solder ability
260 ℃, ≦ 3s. (wave)
350±10 ℃, ≦ 3s. (soldering iron)

Resistance to Soldering Heat
260 ℃, 10s. (wave)
350 ℃, 5s. (soldering iron)

Storage Conditions

Can be stored for 3 years under tight seal condition at temperature
     of +10℃~60℃, relative humidity ≤ 75%.
     At most can be kept 30 days at temperature +10℃~60℃,
    relative humidity ≤ 95% under covered conditions

I-T Characteristics

Ampere Rating	% of Ampere Rating	Opening Time
100mA~30A	100%	4Hrs Min.
	135%	1Hrs Max.
	200%	5s Max.

Buy cheap 15A 250v Fast Blow Fuses 6x30mm product

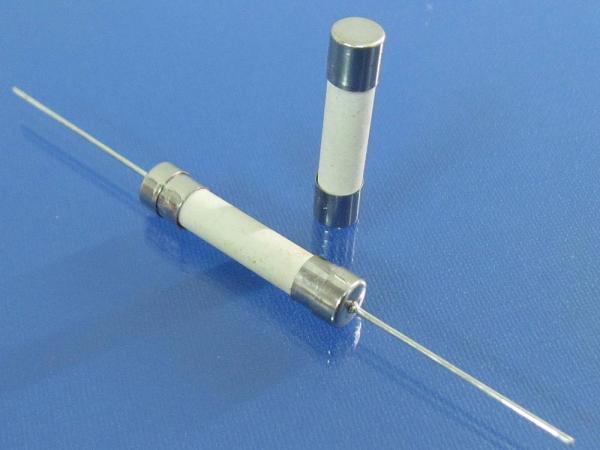

15A 250v Fast Blow Fuses 6x30mm Images
